Motorhome

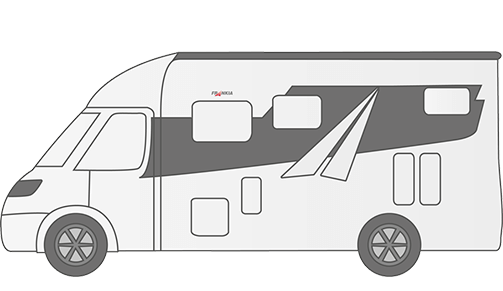

FRANKIA M-Line T 7400

Find out more

FRANKIA M-Line T 7400 – Top new model for 2019

Revolutionary luxury for two: The M-Line Low-Profile by FRANKIA

The T 7400 is yet another unique motorhome by FRANKIA: A Low-Profile motorhome on the new Mercedes-Benz Sprinter chassis featuring powerful rear-wheel drive with great traction.

Enjoy living at its finest, even more storage space, a sporty look and lots of high-tech equipment – in a completely newly developed FRANKIA motorhome.

  • Unique 5 t Low-Profile on a Mercedes-Benz platform
  • New FRANKIA SKA comfort seats rotate 180° and offer individual adjustment
  • Convertible feeling: Light-flooded interior thanks to standard panoramic roof with two large windows and 2.03 m of headroom all the way to the cab
  • High-tech driver’s cab: MBUX multimedia system and state-of-the-art assistance systems

Available floor plans

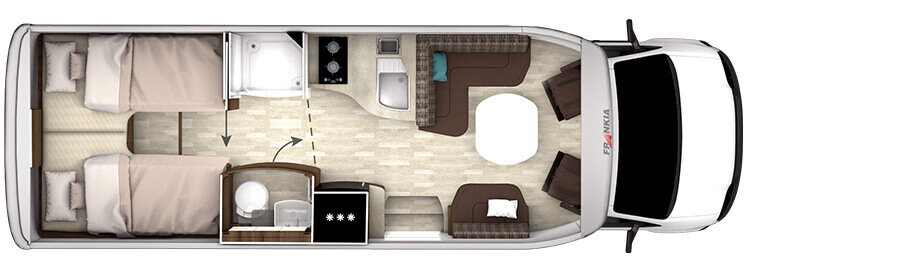

FRANKIA M-Line T 7400 GD

Enjoy relaxing evenings in the large FRANKIA seating area and watch the stars through the extra-large panoramic roof. Comfortable single beds await you when it’s time to sleep and turn into a double bed (optional).

FRANKIA M-Line T 7400 GD
  • Every inch is used intelligently to create even more storage space, for example with compartments all the way to the front of the vehicle
  • Separate beds with high-quality plate spring system
  • Completely stepless double floor with 150-litre fresh water tank
  • Luxury equipment standard: Many special features included
Engine:

Mercedes-Benz • 120 KW/163 hp • 4 cylinder/2,148 ccm

Available chassis:

Mercedes-Benz • Sprinter 516

FRANKIA M-Line T 7400
Total width
230 cm
Total height
309 cm
FRANKIA M-Line T 7400
Total length
767 cm
    Standard seats with seatbelts
  • 2
  • 3
  • 4
Headroom in vehicle
203 cm
    Standard sleeping berths
  • 2
Maximum permissible laden weight
5,000
| 5,300
| 5,500
kg
Contact Us Find Dealer Technical Data FRANKIA M-Line

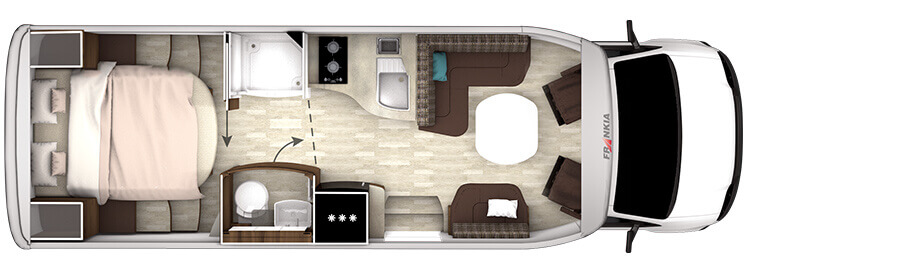

Virtual Tour – FRANKIA M-Line T 7400 QD

Virtual Tour – FRANKIA M-Line T 7400 GD

Equipment

Standard Mercedes chassis package

  • Driver and passenger airbag
  • 163 hp EURO 6 BlueTec engine
  • ABS, TCS, EBD, ESP
  • LED high beam with LED turning signal ring (only for A-Class)
  • 71 litre diesel tank
  • Manual gearbox
  • Semi-automatic climate control
  • Cruise control
  • 180 A alternator
  • 5 t technically permissible gross weight
  • Steering wheel adjustable in height and depth
  • Electrical auxiliary chassis heater for faster heating of the interior
  • LED high beam and blinker in the A-Class series
  • Original Mercedes-Benz elevated frame
  • Body: GFRP gelcoat white – hail resistant
  • Thermo Guard Plus side walls including 7-year water ingress warranty
  • Heated double floor 126/348 mm height
  • Fly screen integrated in the door frame and all roof hatches
  • Central locking for body door and cab door via original vehicle key (second remote for T 7400)
  • LED awning light with separate switchable motion sensor
  • FRANKIA MaxiFlex kitchen – uniquely functional modular kitchen featuring a high-end HPL worktop with expandable surface
  • Drop-down bed with power adjustment (for A-Class vehicles)
  • Volume of fresh water tank approx. 150 litres
  • Volume of waste water tank approx. 130 litres
  • Storage spaces with LED lighting
  • Rail system for securing cargo (for high rear storage compartments)
  • Seitz S7 windows with tinted panes, fly screen and blind, installed flush with the wall
  • CBE BUS control panel with LCD screen
  • Self-retracting cable reel with 15 m of cable
  • Manual darkening blind for Low-Profile
  • Storage space lighting underneath the seating area
  • Manual rear supports (n/a if optional air suspension ordered)
  • Central supply system with cable reel and water drum
  • Selection of wood/fabric combinations from six different design options
  • Ceramic toilet
  • Second Thetford Cassette toilet
  • Battery 1 x 80 Ah GEL, incl. 22 Ah charger
  • Dimmable ambient lighting
  • Dimmable spot lights
  • Reading lights
  • 230 V sockets 4x
  • USB sockets 3x
  • Car radio ready
  • High-quality roof combination antenna UKW/DAB+/GPS
  • Fresh water tank with adjustable 50-litre drive load
  • Power front roller blind instead of manual darkening blind (only for A-Class)
  • 2nd 80 Ah GEL battery incl. 22 Ah additional charger
  • 230 V socket in passenger side rear storage compartment
  • 12 V socket in passenger side rear storage compartment
  • ALDE Compact 3020 HE hot water heating system

Please note that not all options shown here are possible for each floor plan.


“Hidden” power drop-down bed above the round seating group for A/I 790 PLUS (TITAN)
Sleep crosswise in the FRANKIA Duo bed
Alde hot water heating system for cold days
Alphatronics 24 inch LED TV with DVB-S2/T2/C tuner, DVD player and Bluetooth
Lots of space: Bed extension for GD beds
Dometic Freshlight – roof-mounted air conditioner with skylight
Alpine Dolby Surround Sound speaker system
Awning with LED lighting
Environmentally friendly: Generate your own power with the optional solar system
Practical and convenient pull-out system in the rear storage compartment
Everything in view: 360° camera with large display
Gas cylinder box with optional Duo-Control and Ice-Ex
Front section designed for ample storage space instead of a drop-down bed
Easy-care kitchen worktop (mineral composite shown)
Inset 3-burner hob
Additional socket, e.g. in the rear storage compartment
Integrated oven by Thetford
Powerful gas hob
Easy-to-clean carpet throughout the interior
Two Heki 3 skylights arranged in a row for better lighting
Additional seats with seatbelts in all PLUS floor plans
Comfortable driver and passenger seats with integrated heating, 4-way lumbar support and lateral contour adjustment
Alpine radio with touchscreen display, navigation, DVD/CD player, DAB/DAB+ tuner, Bluetooth and much more
Cab door with electrically extending and retracting step
